Self Clean Cartridge Filter Back-flushing Backwash Filter 130-3600 m3h for Petrochemical Industry

  • 1
  • 2
  • 3

Brand Name : Crowns

Certification : ISO 9001; CE

Place of Origin : China

MOQ : 1set

Price : $2650-$3000/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000SETS/PER YEAR

Delivery Time : 20 working days

Packaging Details : carton

Maximum flow : 4~354m3 /h

Pressure : 0.1-1.6 MPa

Thickness(mm) : 2

Design pressure : 0.6~6.3mpa

Filtration degree : 10~100micron

Weight : 100kg

Filter elements : 222 O-ring,226 O-ring

Filtration Micro Rating : 30-3000μm

Contact Now

Multi Filter Element Automatic Self Clean Backwashing Filter Cartridge With Control Cabinet

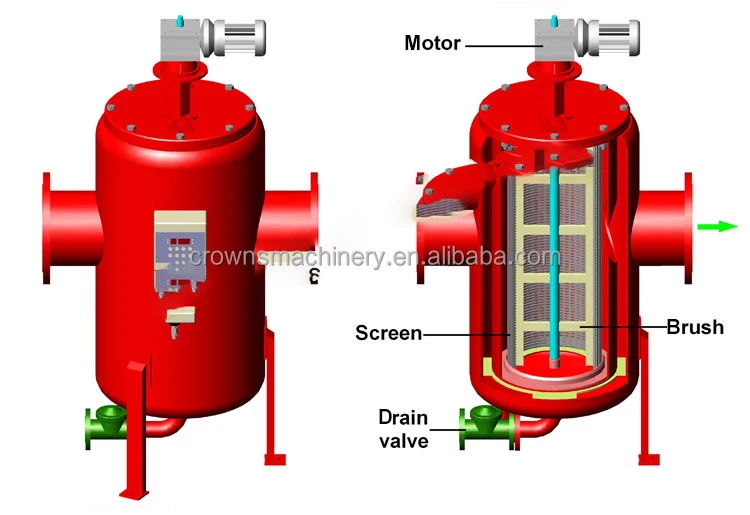

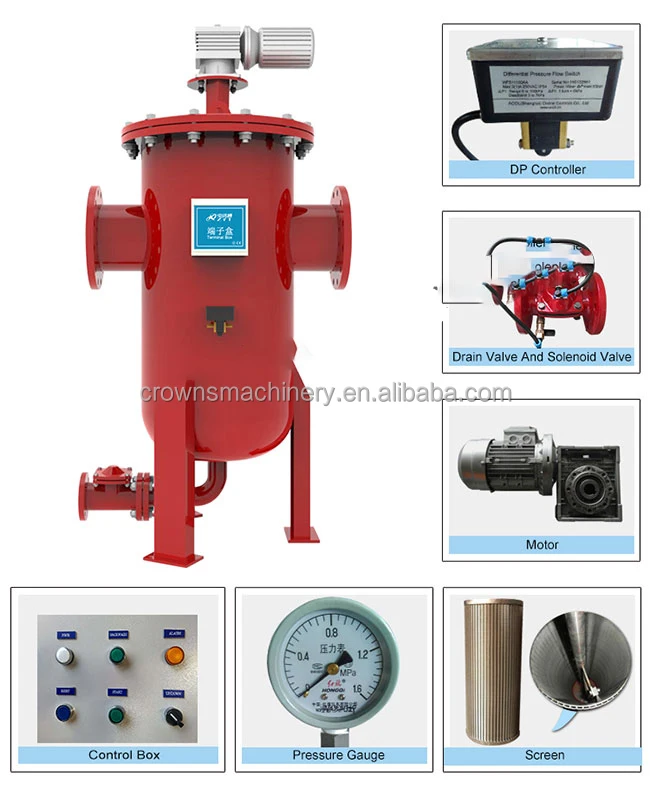

Automatic backwash filter is composed of the drive mechanism, the control circuit (including the pressure switch), filter components, cleaning device, connecting flanges and other major component parts.It cleans sewage by the drive motor and the electric valve automatically, the operation mode is automatic operation (option:manual operation), with timing control or pressure difference control. Its automated part is controlled by reliable PLC programmable controller. Water enters into the filter, the mechanical impurities are intercepted.When the impurities accumulate for a period, reaches 0.05MPa, then the differential pressure switch will send signal, while the PLC command is issued, transmission motor starts, the drain valve opens, the impurities deposited on the filter is brushed away, and drain out. The whole process is without personnel, without downtime. Besides, the device also has the function of timing and manual cleaning to ensure that the outlet water is safe under any circumstances.

Features

Micron Rating
30-3000μm
Maximum Operating Pressure
1.0MPa/1.6MPa
Flow Rate Range
4~354m3 /h
Maximum Operating Temperature
200℃
Housing Material
SUS316L/SUS304/CS
Element Material
SUS316L/SUS304
Sealing Material
NBR/FKM/Silicone/PTFE/EPDM
Explosion Proof
Explosive-proof components are used for flammable and explosive operating conditions
Be support to cunstomized
yes

Self Clean Cartridge Filter Back-flushing Backwash Filter 130-3600 m3h for Petrochemical Industry
Self Clean Cartridge Filter Back-flushing Backwash Filter 130-3600 m3h for Petrochemical Industry
Self Clean Cartridge Filter Back-flushing Backwash Filter 130-3600 m3h for Petrochemical Industry
Self Clean Cartridge Filter Back-flushing Backwash Filter 130-3600 m3h for Petrochemical Industry
Self Clean Cartridge Filter Back-flushing Backwash Filter 130-3600 m3h for Petrochemical Industry
Self Clean Cartridge Filter Back-flushing Backwash Filter 130-3600 m3h for Petrochemical Industry

Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

before shipment.

Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

also water electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

and support training to workers also.

Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
